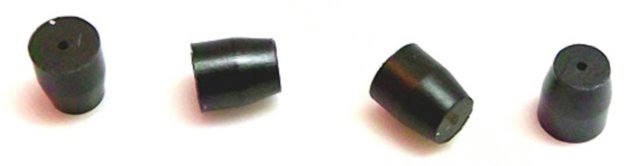

Supeltex^® M-2A Capillary Ferrule, Long Design

SB.54

Swage type fittings are one of the most popular connectors which are available in metal and plastic forms; they are very useful for connecting similar or dissimilar materials, like metal to glass or metal to plastic. The general swage tubing coupler has four parts namely the body, into which the tube is placed, two ferrules that is front ferrule and back ferrule and lastly a packing nut. M-2A Capillary Ferrule Conforms easily to capillary columns, ensuring an effective seal with less chance of breakage and has high reusability.
特性：用手拧四分之一圈可紧固密封。可重用性高。不会粘连金属或玻璃。

材料成分：DuPont VESPEL SP-21(85% 聚酰亚胺，15% 石墨)

最高温度：400℃

Supeltex is a registered trademark of sigma-aldrich Co. LLC

pkg of 10 ea

Agilent/HP 5062-3508 (OEM)
PerkinElmer 09920104 (OEM)
Varian CR 213104 (OEM)

0.4 mm

0.10-0.25 mm Column I.D.
